ClimateMaster Geothermal Heat Pumps
2018 ENERGY STAR® Most Efficient Certified Geothermal HVAC Systems & Geothermal Heat Pump Systems
ClimateMaster offers a variety of geothermal systems to help you lower your heating, cooling and hot water bills by up to 70%. Our efficient geothermal heat pump systems can help you with many home heating and cooling needs, including
ClimateMaster offers a variety of geothermal systems to help you lower your heating, cooling and hot water bills by up to 70%. Our efficient geothermal heat pump systems can help you with many home heating and cooling needs, including
- Home heating and cooling
- Water heating (including pools)
- Indoor and outdoor radiant/ underfloor heating

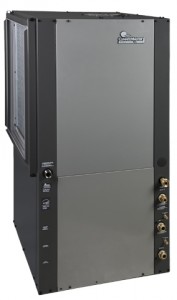

TTrilogy 45 Q-Mode Packaged Systems
ClimateMaster Trilogy Packaged Systems are the most technologically advanced geothermal heating and cooling systems available for both new construction and retrofit applications. They incorporate a “Trilogy” of precision components (variable speed compressor, variable sped fan and variable speed water pump), the iGate® Smart Water Tank, and the iGate® Connect web enabled thermostat to provide the lowest operating cost of any heating and cooling solution. Trilogy 45 Q-Mode has been designated as one of the Most Efficient ENERGY STAR certified products in 2018 for exceeding stringent efficiency requirements.
- Highest Efficiency and Comfort
- ENERGY STAR® Most Efficient recognition for 2018
- 45 EER/5.1 COP
- Variable Speed Compressor, Indoor Fan, and Water Loop Pump
- Q-Mode® Full-Time Hot Water Savings
- iGate® Connect Internet Enabled Thermostat
- High Efficiency iGate® Smart Tank

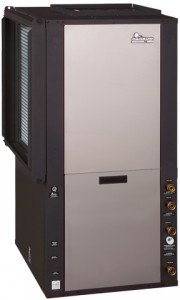

Tranquility® Packaged Systems
ClimateMaster Tranquility® Packaged Systems provide heating and cooling for new construction and retrofit applications. Tranquility® Digital Packaged Systems incorporate the latest geothermal technology, including iGate®, vFlow®, and variable speed indoor fans, to provide the highest efficiency and lowest operating cost of any ClimateMaster geothermal system available. The Tranquility® Digital Packaged Series has been designated as one of the Most Efficient ENERGY STAR certified products in 2018 for exceeding stringent efficiency requirements.
Tranquility® 30 Digital (TE)
- 29.6 EER/5.0 COP
- 2-Stage Compressor
- Optional vFlow® Internal Variable Water Flow Control
- iGate® Communicating Controls
- Variable Speed Indoor Fan
Tranquility® 22 Digital (TZ)
- 22.0 EER/4.1 COP
- 2-Stage Compressor
- Optional vFlow® Internal Variable Water Flow Control
- iGate® Communicating Controls
- Variable Speed Indoor Fan
Tranquility® 20 (TS)
- 21.9 EER/4.3 COP
- 1-Stage Compressor
- External Fixed Speed Water Flow Control
- Non-Communicating Controls
- Single Speed Indoor Fan (Standard)
- Variable Speed Indoor Fan (Optional)
Tranquility® Split Systems
ClimateMaster Tranquility® Split Systems provide heating and cooling for both new construction and retrofit applications in which installation space is at a minimum. Tranquility® Digital Split Systems incorporate the latest geothermal technology, including iGate® and vFlow® to provide the highest efficiency and lowest operating cost of the ClimateMaster geothermal split systems. When combined with ClimateMaster Tranquility® Cased Coils (TAC) and Digital Air Handlers (TAH), our split systems achieve maximum efficiencies. The Tranquility® Digital Split Series has been designated as one of the Most Efficient ENERGY STAR certified products in 2018 for exceeding stringent efficiency requirements.
Tranquility® Digital Indoor Split (TES)
- 26.3 EER/4.6 COP
- 2-Stage Compressor
- Optional vFlow® Internal Variable Water Flow
- iGate® Communicating Controls
Tranquility® Digital Outdoor Split (TEP)
- 26.3 EER/4.6 COP
- 2-Stage Compressor
- vFlow® Internal Variable Water Flow
- iGate® Communicating Controls
Tranquility® Digital Air Handler (TAH)
- 4-Wire connection to Thermostat and TES/TEP
- Variable Speed Indoor Fan
- Compatible with TTS/TTP
Tranquility® Cased Coil (TAC)
- Allows for Dual Fuel Applications
- Delivers highest efficiency when matched with TES/TEP/TTS/TTP
Tranquility® Water-To-Water Systems
ClimateMaster Tranquility® Water-To-Water Systems are ideal for hydronic heating and domestic hot water generation in both new construction and retrofit applications. These include space heating, pool heating, radiant floor heating, snow/ice melt, and potable hot water generation.
How much can a geothermal heat pump save you on your energy bills? Use our quick and easy geothermal savings calculator to see how geothermal heat pump efficiency can save you on your energy bills.
How much can a geothermal heat pump save you on your energy bills? Use our quick and easy geothermal savings calculator to see how geothermal heat pump efficiency can save you on your energy bills.
Tranquility® Brazed Plate Water-to-Water (TBW)
- 17.3 EER/3.1 COP
- 1-Stage Compressor
- Communicating Controls
- Generates Hot and Chilled Water
Tranquility® Coaxial Water-to-Water (TCW)
- 23.1 EER/4.0 COP
- 1-Stage Compressor
- Communicating Controls
- Generates Hot and Chilled Water
